Flat Pallets
With 3 runners (Series 3FL)
| Model No. |
Dimensions |
Max Loading Capacity (MT) |
|
| |
L (mm) |
B (mm) |
H (mm) |
Dynamic Load（Metric Tonnes） |
Static Load（Metric Tonnes） |
Rack Load (Metric Tonnes) |
Pallet Wt.（Kg） |
| 3FL1208 |
1200 |
800 |
160 |
1.00 |
5.00 |
0.60 |
13.20 |
| 3FLA1210 |
1200 |
1000 |
160 |
1.50 |
6.00 |
0.80 |
16.40 |
| 3FLB1210 |
1200 |
1000 |
150 |
1.20 |
6.00 |
0.60 |
14.60 |
| 3FLI4-1210 |
1200 |
1000 |
150 |
1.50 |
6.00 |
0.80 |
20.40 |
| 3FLI7-1210 |
1200 |
1000 |
150 |
1.50 |
6.00 |
1.00 |
20.40 |
Top Side
Bottom side
With 7 feet (Series 7F)
| Model No. |
Dimensions |
Max Loading Capacity (MT) |
|
| |
L (mm) |
B (mm) |
H (mm) |
Dynamic Load（Metric Tonnes） |
Static Load（Metric Tonnes） |
Rack Load (Metric Tonnes) |
Pallet Wt.（Kg） |
| 7F1208 |
1200 |
800 |
150 |
0.50 |
1.20 |
Not suitable for rack loading |
8.30 |
| 7FA1107 |
1150 |
730 |
150 |
0.30 |
1.00 |
Not suitable for rack loading |
7.20 |
| 7FB1107 |
1125 |
700 |
150 |
0.30 |
1.00 |
Not suitable for rack loading |
7.40 |
Top Side

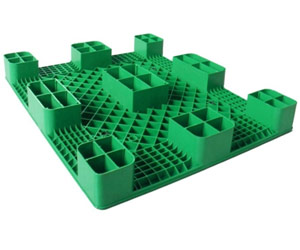

Bottom side
With 9 Feet (Series 9F)
| Model No. |
Dimensions |
Max Loading Capacity (MT) |
|
| |
L (mm) |
B (mm) |
H (mm) |
Dynamic Load（Metric Tonnes） |
Static Load（Metric Tonnes） |
Rack Load (Metric Tonnes) |
Pallet Wt.（Kg） |
| 9FA1210 |
1200 |
1000 |
130 |
1.00 |
4.00 |
Not suitable for rack loading |
13.80 |
| 9FB1210 |
1200 |
1000 |
140 |
1.00 |
4.00 |
Not suitable for rack loading |
13.85 |
| 9FH1412 |
1400 |
1200 |
140 |
1.20 |
6.00 |
Not suitable for rack loading |
22.20 |
Top Side
Bottom Side
With Cross Bottom (Series FX)
| Model No. |
Dimensions |
Max Loading Capacity (MT) |
|
| |
L (mm) |
B (mm) |
H (mm) |
Dynamic Load（Metric Tonnes） |
Static Load（Metric Tonnes） |
Pallet Wt.（Kg） |
| FX1210 |
1200 |
1000 |
150 |
1.20 |
6.00 |
18.60 |
Top Side
Bottom Side
PALLET-LOADS :
 Static load: Weight that a pallet can carry, placed on a flat floor.
 Dynamic load: Weight that a pallet can carry in motion, like when it is placed on the forks of a forktruck.
 Racking load: Weight that a pallet can carry when placed in a pallet-rack.
|
